Lollar Pickups Blog

Welcome to the Lollar Pickups Blog, where we share in-depth information and stories about the pickups we build.

The Genuine Lollar Experience

Hi Lollar fans! We sometimes get requests to verify the authenticity of Lollar pickups, whether its a set that pops up on eBay, or a used guitar that is said to be stocked with our stuff. Sometime in 2003 or 2004 we standardized how our pickups were marked, and it is still done the same today. The only way to know for sure that you have a genuine Lollar pickup is to check the bottom and look for the proper markings. We label them in a few different ways, from humbuckers to Strats… there are certain things to look for to insure authenticity.

CURRENT PRODUCTION:

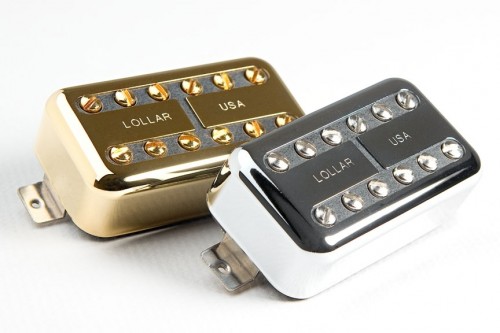

HUMBUCKERS: All our humbuckers have tags screwed to the bottom and are stamped with “LOLLAR IMPERIAL” followed by the year, and if it is a neck or a bridge. Color is important as well… a black label is standard wind, grey is a Low Wind, and red is a High Wind. The name of the builder will be initialed in the right bottom corner.

humbucker

Continue reading

The Phoenix: A Collaboration between Scott Walker, Steve Kimock, John Cutler, and Jason Lollar

A special review of the new Phoenix, built by Scott Walker Guitars:

Lollar Blade Style pickups are featured on the "Phoenix"
Lollar Blade Style pickups are featured on the “Phoenix”

We wish Scott Walker, of Scott Walker Guitars, the best of luck with one of his newest releases – the Phoenix. This project actually started in 2007 with Scott and Steve Kimock, and a conversation about guitar ergonomics. Some time later in that ongoing conversation Steve contacted Jason to seek some advice about pickup design. Jason recalls that Steve had some specific goals in mind, and the two of them worked together to try to accomplish what Steve was “aiming” for.

Steve had purchased a number of Lollar pickups over time, including a few custom items. For example, Steve had liked the Charlie Christian blade style concept, and he had previously asked Jason to make a custom blade style pickup in a single coil design fairly similar to a Strat build. In other words, a taller pickup with a more focused, brighter sound. But for the project that eventually turned out to be the Phoenix, Steve became intrigued by the wider, flat shape of a Jazzmaster style pickup. Something that would be less bright than the tone that is created by a taller, narrower coil.

After the overall coil shape was identified, two more related elements came into clear view – the blade and its overall extension beyond the normal center-to-center outside string spacing. In other words, Steve wanted the blade to extend further beyond each side of the high and low strings so that there were no drop-outs when string-bending, and so there would be no drop in response in the high E string.

A blade style pickup can increase output and sustain
A blade style pickup can increase output and sustain

The blade itself is also an important feature of the pickups. The blade does two things that affect the overall function of the pickup. A ferrous (iron) based blade propagates the magnetically field differently than individual pole pieces. The blade also increases the inductance of the pickup. Inductance is a measurement of a pickup’s ability to convert the physical vibration of the string and convert it into and electrical signal. The end result is that the pickup will give you a fuller sound, a little more overall output, and a longer sustain as compared against a Fender style Jazzmaster pickup.

We wish Scott the best of luck with the new Scott Walker Guitars Phoenix. For more information on the guitar, you can go directly to the Scott Walker Guitars web site.
