Pickup Wiring Diagrams

Looking for wiring diagrams, spec sheets, or product photos? We've got you covered. Please see below for support content and documentation, and reach out to our team at [email protected] if there's anything you need help finding. We're always happy to help.

Showing 29 diagrams

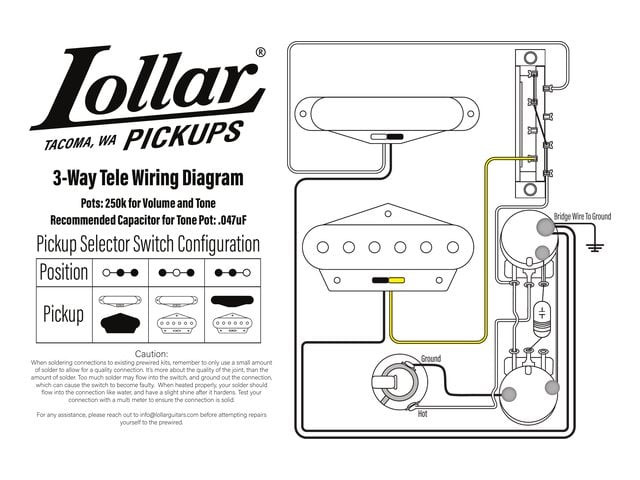

Telecaster 3-Way wiring diagram PDF
Telecaster

Telecaster 3-Way

Download(opens in a new tab)

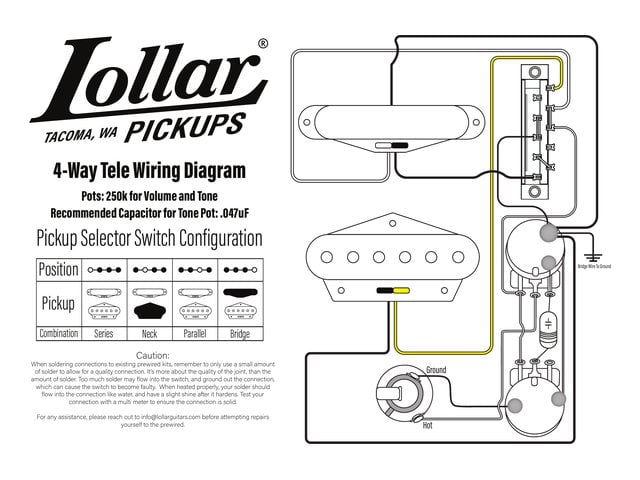

Telecaster 4-Way wiring diagram PDF
Telecaster

Telecaster 4-Way

Download(opens in a new tab)

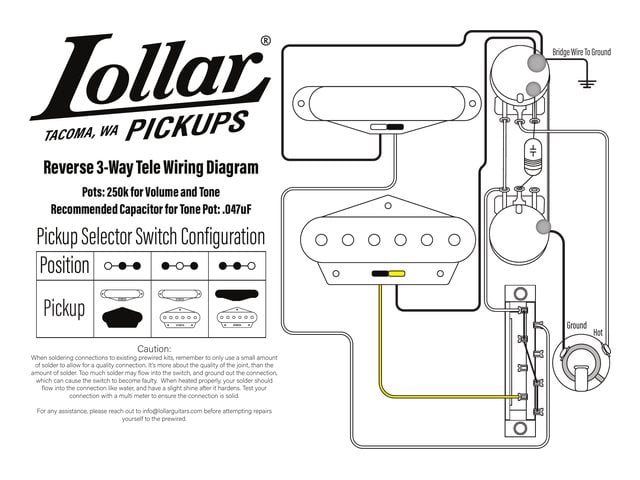

Reverse Telecaster 3-Way Reverse control plate wiring diagram PDF
Telecaster

Reverse Telecaster 3-Way

Reverse control plate

Download(opens in a new tab)

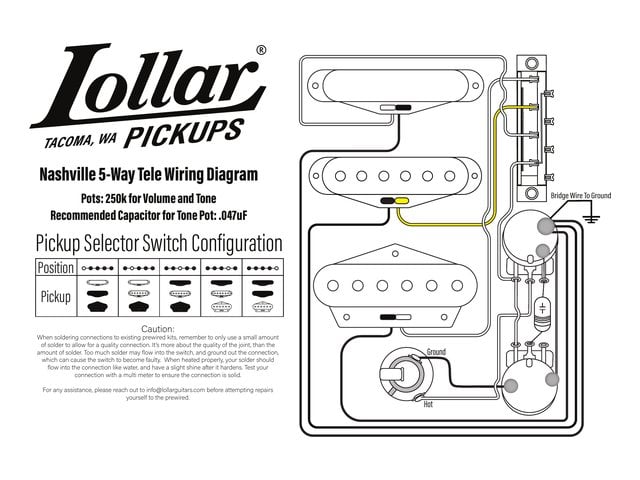

Nashville Telecaster 5-Way wiring diagram PDF
Telecaster

Nashville Telecaster 5-Way

Download(opens in a new tab)

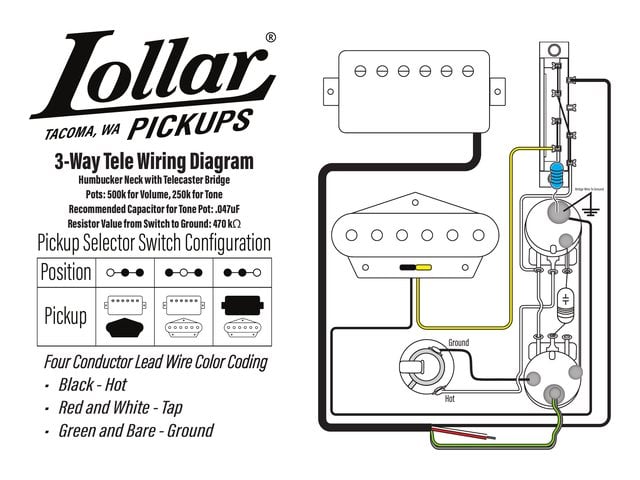

HS Telecaster 3-Way Humbucker neck 4-conductor wiring diagram PDF
Telecaster

HS Telecaster 3-Way

Humbucker neck · 4-conductor

Download(opens in a new tab)

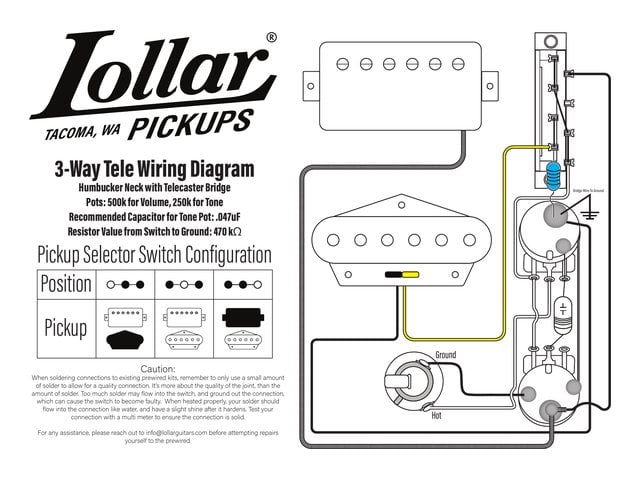

HS Telecaster 3-Way Humbucker neck single-conductor wiring diagram PDF
Telecaster

HS Telecaster 3-Way

Humbucker neck · single-conductor

Download(opens in a new tab)

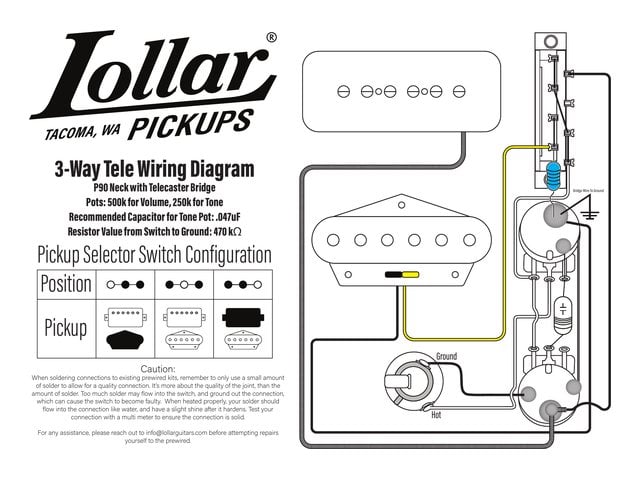

HS Telecaster 3-Way P-90 neck wiring diagram PDF
Telecaster

HS Telecaster 3-Way

P-90 neck

Download(opens in a new tab)

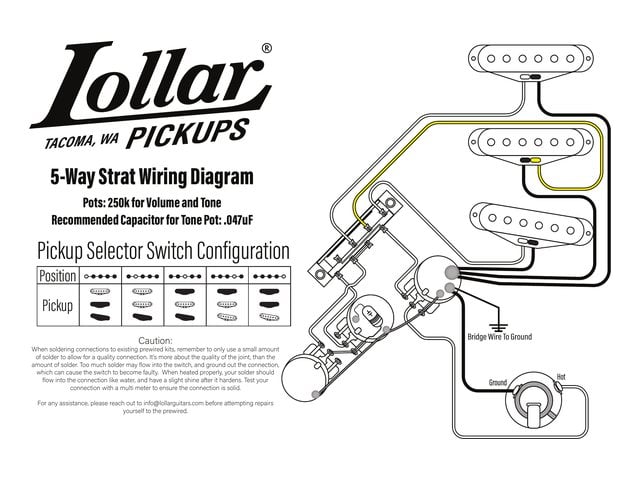

Stratocaster 5-Way wiring diagram PDF
Stratocaster

Stratocaster 5-Way

Download(opens in a new tab)

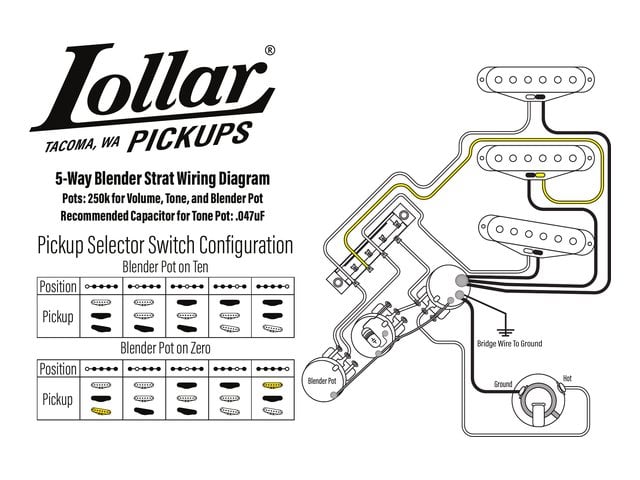

Stratocaster 5-Way Blender wiring diagram PDF
Stratocaster

Stratocaster 5-Way Blender

Download(opens in a new tab)

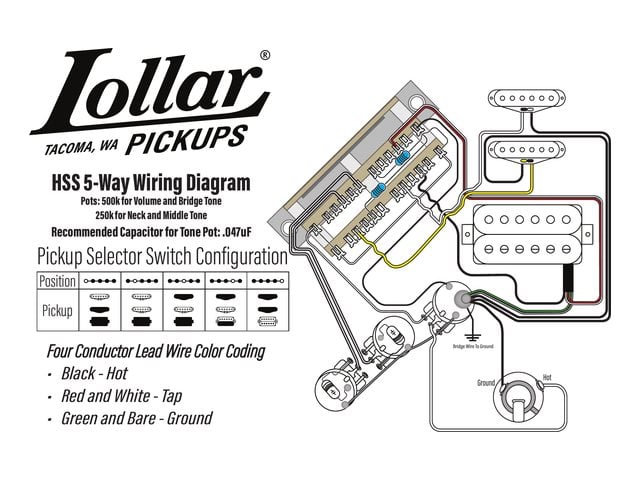

HSS Stratocaster 5-Way Super switch 4-conductor wiring diagram PDF
Stratocaster

HSS Stratocaster 5-Way

Super switch · 4-conductor

Download(opens in a new tab)

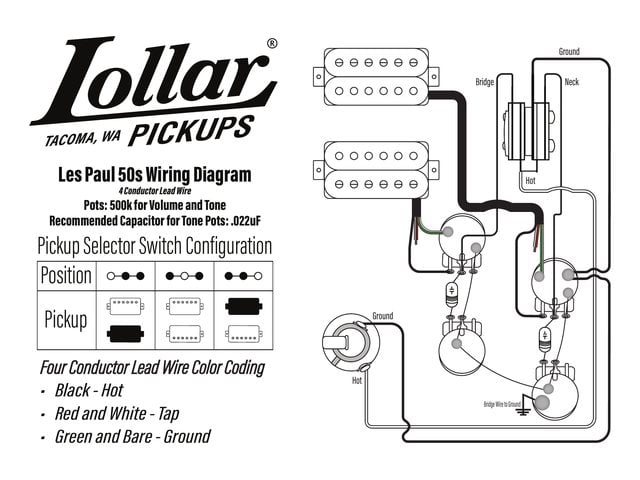

Les Paul '50s 4-conductor wiring diagram PDF
Les Paul & SG

Les Paul '50s

4-conductor

Download(opens in a new tab)

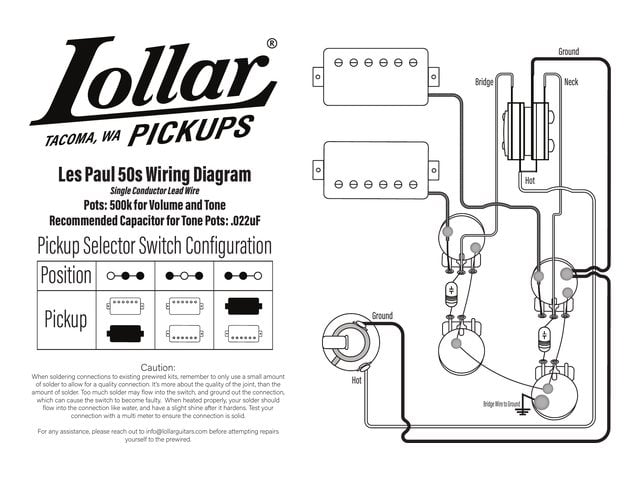

Les Paul '50s Single-conductor wiring diagram PDF
Les Paul & SG

Les Paul '50s

Single-conductor

Download(opens in a new tab)

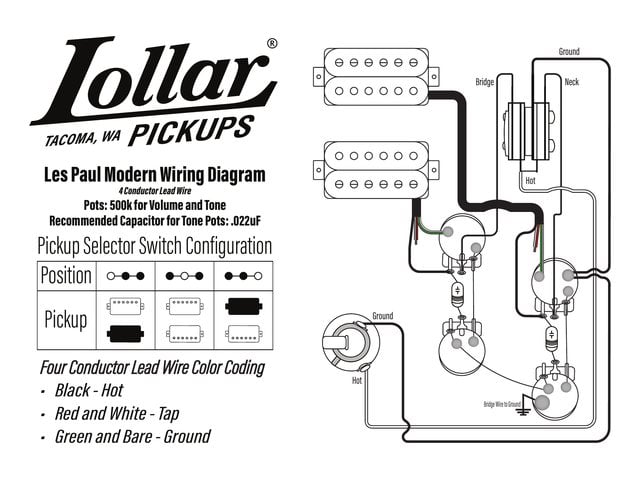

Les Paul Modern 4-conductor wiring diagram PDF
Les Paul & SG

Les Paul Modern

4-conductor

Download(opens in a new tab)

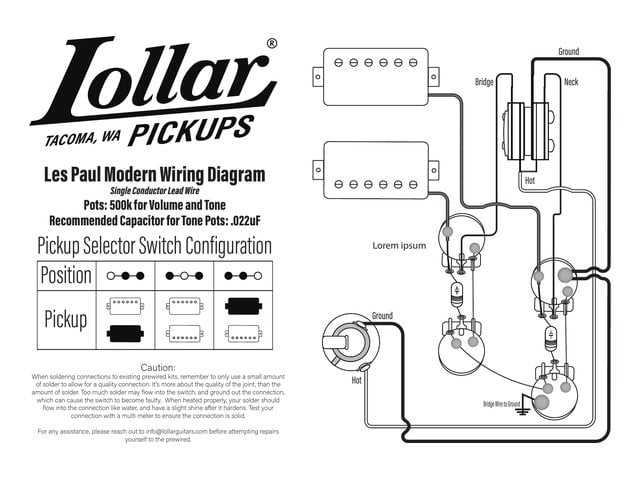

Les Paul Modern Single-conductor wiring diagram PDF
Les Paul & SG

Les Paul Modern

Single-conductor

Download(opens in a new tab)

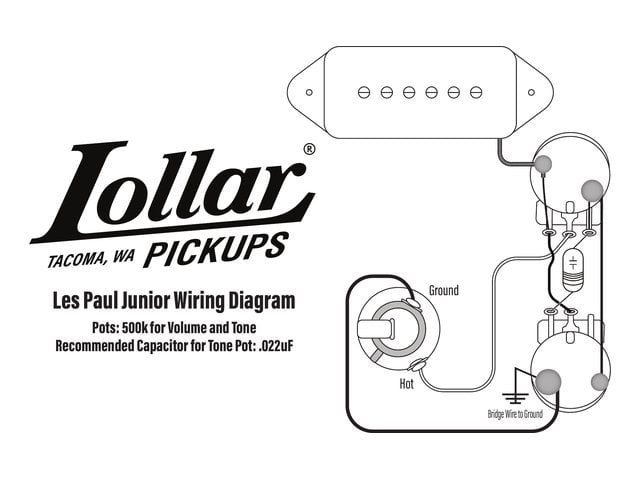

Les Paul Junior wiring diagram PDF
Les Paul & SG

Les Paul Junior

Download(opens in a new tab)

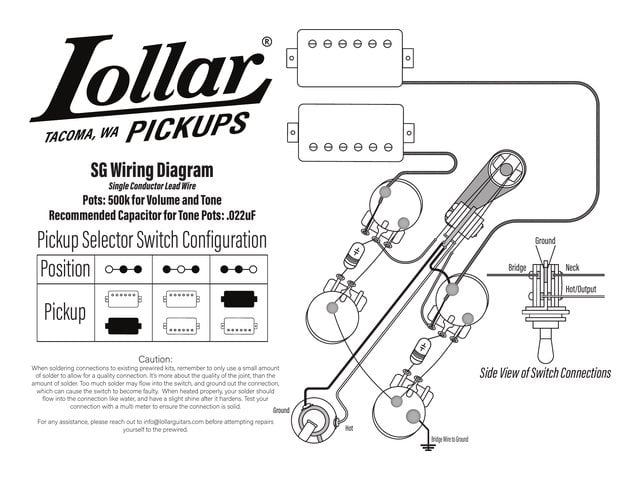

SG Single-conductor wiring diagram PDF
Les Paul & SG

SG

Single-conductor

Download(opens in a new tab)

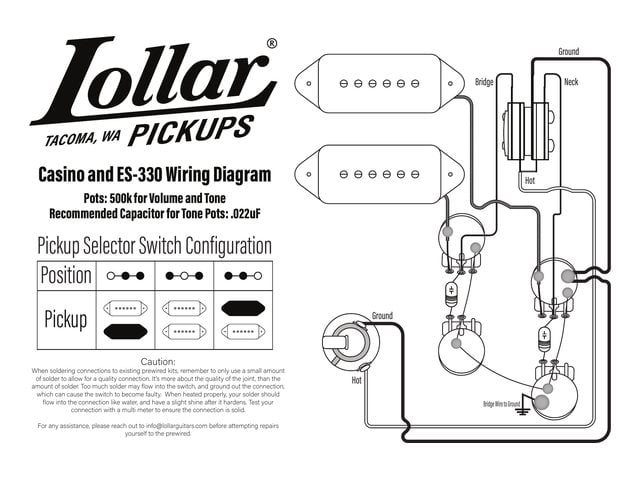

Casino and ES-330 wiring diagram PDF
Other guitars

Casino & ES-330

Download(opens in a new tab)

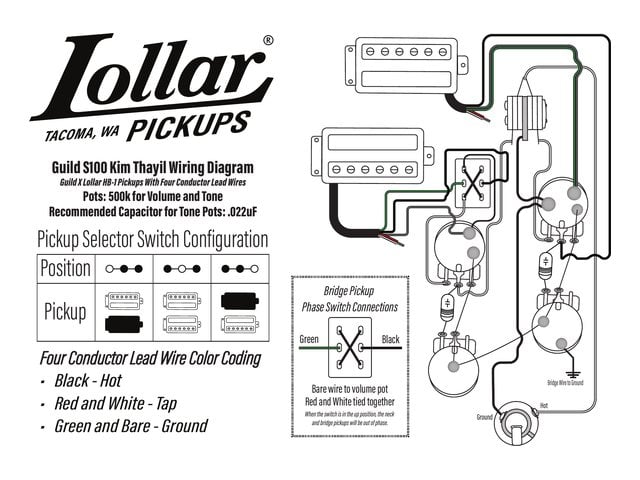

Guild S100 Kim Thayil Guild X Lollar HB-1 phase switch wiring diagram PDF
Other guitars

Guild S100 Kim Thayil

Guild X Lollar HB-1 · phase switch

Download(opens in a new tab)

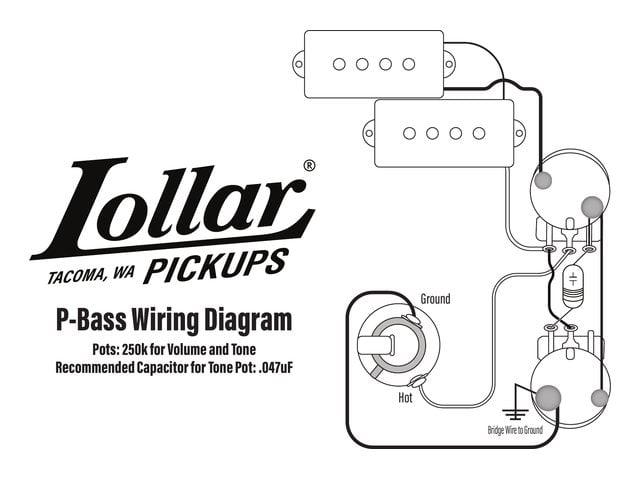

P-Bass wiring diagram PDF
Bass

P-Bass

Download(opens in a new tab)

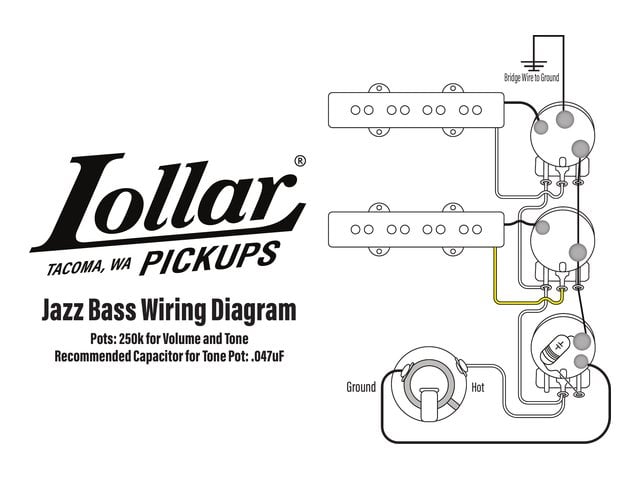

Jazz Bass wiring diagram PDF
Bass

Jazz Bass

Download(opens in a new tab)

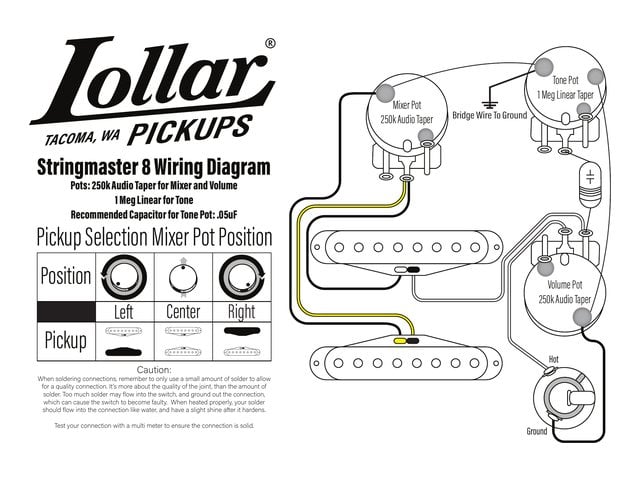

Stringmaster 8 wiring diagram PDF
Steel

Stringmaster 8

Download(opens in a new tab)

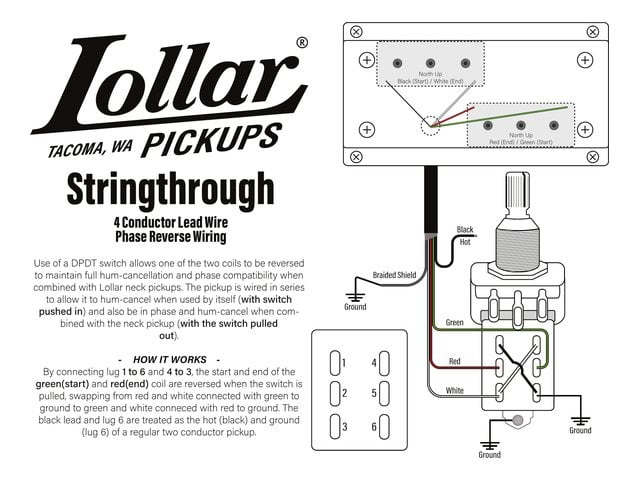

String-Through Steel 4-conductor phase reverse wiring diagram PDF
Steel

String-Through Steel

4-conductor · phase reverse

Download(opens in a new tab)

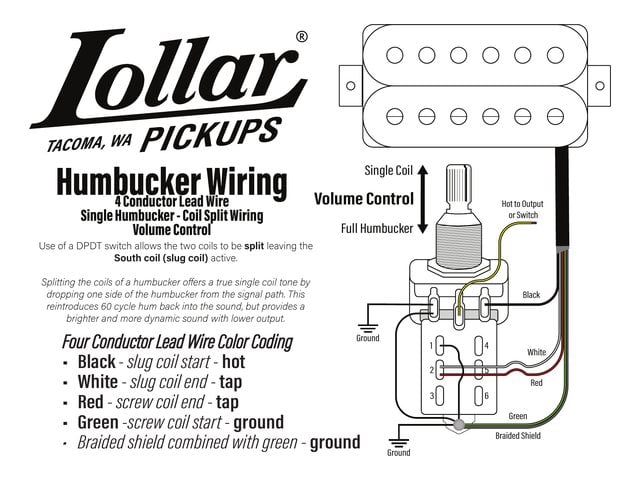

Humbucker Coil Split Volume pot wiring diagram PDF
Mod

Humbucker Coil Split

Volume pot

Download(opens in a new tab)

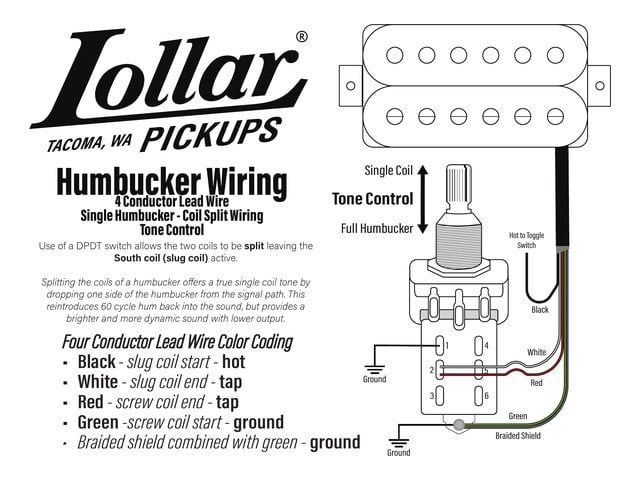

Humbucker Coil Split Tone pot wiring diagram PDF
Mod

Humbucker Coil Split

Tone pot

Download(opens in a new tab)

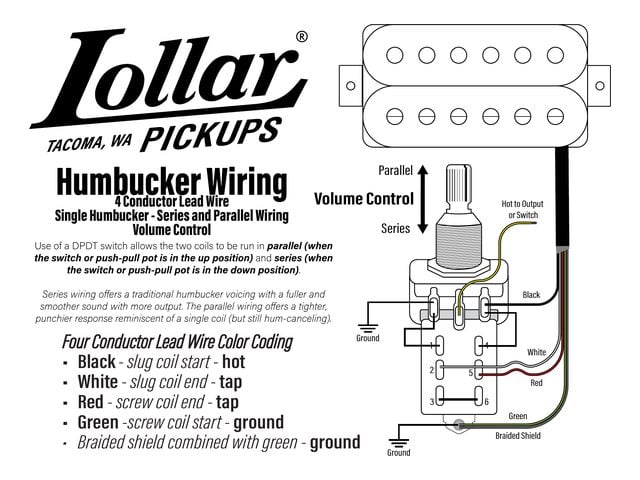

Humbucker Series / Parallel Volume pot wiring diagram PDF
Mod

Humbucker Series / Parallel

Volume pot

Download(opens in a new tab)
Humbucker Series / Parallel Tone pot wiring diagram PDF
Mod

Humbucker Series / Parallel

Tone pot

Download(opens in a new tab)
Humbucker Phase Switching Volume pot wiring diagram PDF
Mod

Humbucker Phase Switching

Volume pot

Download(opens in a new tab)

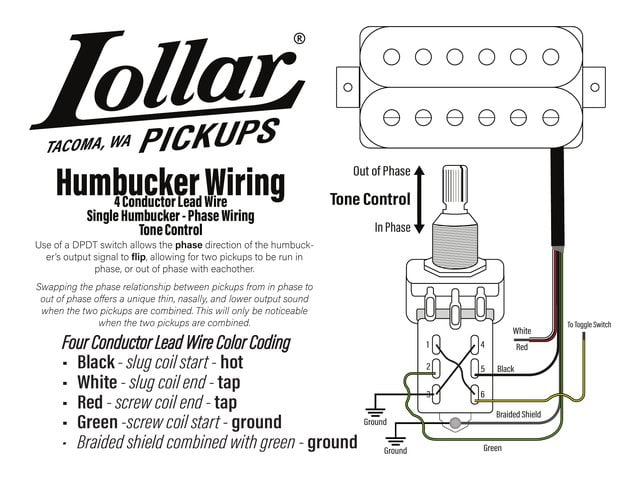

Humbucker Phase Switching Tone pot wiring diagram PDF
Mod

Humbucker Phase Switching

Tone pot

Download(opens in a new tab)

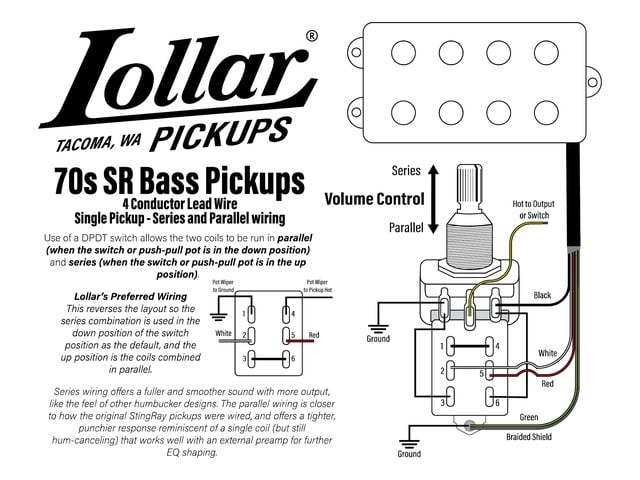

70s SR Bass Series / Parallel Volume pot 4-conductor wiring diagram PDF
Mod

70s SR Bass Series / Parallel

Volume pot · 4-conductor

Download(opens in a new tab)

No diagrams match that search

Try an instrument (“Telecaster”), a switch type (“4-way”), or email [email protected] and we'll track it down.

Before you start. These diagrams assume a basic working knowledge of guitar electronics and soldering safety. If you are not comfortable with the work, a qualified tech can install your pickups quickly and correctly.
