Miscellaneous Single-coil Pickups
Melody Maker Pickups, Pickguards and Pre-wired Sets
Price: $110.00
Pickguard Price: $30.00–$40.00
We now have a P-90 replacement pickup and pickguard for original Melody Makers that requires no modification to the guitar. The original route in the guitar body is too small to fit a soapbar P-90 with a pickup cover but it is large enough to accommodate this modified shaped P-90 pickup. Our pickup is made of vulcanized fiber just like a telecaster bridge pickup and is buffed to a semi gloss lightly textured finish with no pickup cover.
It is available for double cutaway early 60's models with single pickup and for later double cutaway SG style with single pickup. The pickup comes in black only and pickguards are available in single ply black, white or parchment.
It’s as easy as removing the original pickgaurd along with all its attached electronics and dropping in the new pickup and pickgaurd. We can also prewire everything for you. All you have to do is solder the string ground wire to the back of a pot.
Pickup measures 8.4K
PLEASE NOTE: Pre-wired Melody Maker pickguards do not include volume or tone knobs.
• More Details
• Buy Now
Price: $110.00
Pickguard Price: $30.00–$40.00
We now have a P-90 replacement pickup and pickguard for original Melody Makers that requires no modification to the guitar. The original route in the guitar body is too small to fit a soapbar P-90 with a pickup cover but it is large enough to accommodate this modified shaped P-90 pickup. Our pickup is made of vulcanized fiber just like a telecaster bridge pickup and is buffed to a semi gloss lightly textured finish with no pickup cover.
It is available for double cutaway early 60's models with single pickup and for later double cutaway SG style with single pickup. The pickup comes in black only and pickguards are available in single ply black, white or parchment.
It’s as easy as removing the original pickgaurd along with all its attached electronics and dropping in the new pickup and pickgaurd. We can also prewire everything for you. All you have to do is solder the string ground wire to the back of a pot.
Pickup measures 8.4K
PLEASE NOTE: Pre-wired Melody Maker pickguards do not include volume or tone knobs.
• More Details
• Buy Now
Jaguar Style Pickup
Price: $120.00
Wound to sound similar to original early 60s pickups. I have designed these pickups to offer improved bass fidelity and definition in the neck position, and a fuller fatter tone in the bridge position. Available in white covers with chrome-plated metal claws attached and wax potted on. Vintage style cloth covered lead wires.
Neck 5.8K Alnico 5, Bridge 6.3K Alnico 2
• More Details/Soundfiles
• Buy Now
Price: $120.00
Wound to sound similar to original early 60s pickups. I have designed these pickups to offer improved bass fidelity and definition in the neck position, and a fuller fatter tone in the bridge position. Available in white covers with chrome-plated metal claws attached and wax potted on. Vintage style cloth covered lead wires.
Neck 5.8K Alnico 5, Bridge 6.3K Alnico 2
• More Details/Soundfiles
• Buy Now

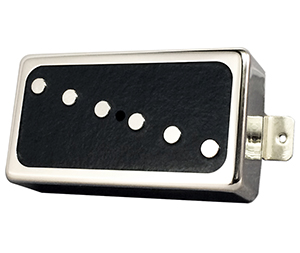

Single-coil for Humbucker Pickup
Price: $135.00
Single coil tones from a humbucker-size pickup. Our SCFH offers a very P90-ish tonality, with a bit more "airiness" and a touch less mid range. The output is similar to a P90, with enhanced clarity and chime. It retains some of the grit and "juiciness" of a P90, while allowing for installation in a humbucker rout with little or no modifications. Alnico2 magnets. Sold as singles or sets. Single conductor, braided shield lead wire. Available in chrome or gold (add $10) open top mounting rings and matte black, gloss black or tortoise top.
Neck 9.7K, Bridge 10.8K
• More Details
• Buy Now
Price: $135.00
Single coil tones from a humbucker-size pickup. Our SCFH offers a very P90-ish tonality, with a bit more "airiness" and a touch less mid range. The output is similar to a P90, with enhanced clarity and chime. It retains some of the grit and "juiciness" of a P90, while allowing for installation in a humbucker rout with little or no modifications. Alnico2 magnets. Sold as singles or sets. Single conductor, braided shield lead wire. Available in chrome or gold (add $10) open top mounting rings and matte black, gloss black or tortoise top.
Neck 9.7K, Bridge 10.8K
• More Details
• Buy Now
Toaster Style Pickups
Price: $130.00
A reproduction of the Rickenbacker style toaster pickup, with the classic Ricky “jangle.” They can be used for surface or pickguard mount. The internal construction and winding are the same as the vintage Rickenbacker toaster pickups, with a slight cosmetic change to the cover. We use traditional Gibson-style single conductor lead wire, with a textured matte black top. Overall size is 3.5” x 1.5.” The pole spacing is 2 inches as measured from center to center of the outside poles. The pole pieces are .25” diameter Alnico 5 rod magnets.
Neck 7.8K, Bridge 8.1K
• More Details
• Buy Now
Price: $130.00
A reproduction of the Rickenbacker style toaster pickup, with the classic Ricky “jangle.” They can be used for surface or pickguard mount. The internal construction and winding are the same as the vintage Rickenbacker toaster pickups, with a slight cosmetic change to the cover. We use traditional Gibson-style single conductor lead wire, with a textured matte black top. Overall size is 3.5” x 1.5.” The pole spacing is 2 inches as measured from center to center of the outside poles. The pole pieces are .25” diameter Alnico 5 rod magnets.
Neck 7.8K, Bridge 8.1K
• More Details
• Buy Now
