"The Broiler" Single-coil pickup


Price: $140.00

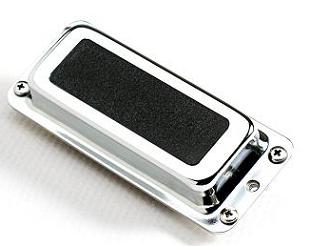

A reproduction of the vintage pickup with the classic "jangle". Roger that! The internal construction and winding are the same as the vintage version, with a slight cosmetic change to the cover. They can be used for surface or pickguard mount. We use traditional Gibson-style single conductor lead wire, with a textured matte black top. Overall size is 3.5" x 1.5". The pole spacing is 2 inches as measured from center to center of the outside poles. The pole pieces are .25" diameter, Alnico 5 rod magnets.
Mounting pad included
Neck 7.8K, Bridge 8.1K

  Broiler Assembly Diagram


Pickup Location:
Neck
Bridge
Both Neck & Bridge (total cost is $280)

Quantity:
