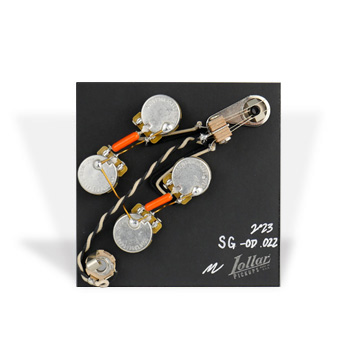

SG Pre-Wired Kit

Product Details

Using the popular ‘50s-style wiring scheme, this kit can be installed in just about any SG with two pickups that each have their own volume and tone controls. ‘50s wiring changes the location of the tone capacitor so high frequencies are more or less left intact with changes to the volume control, while there is a small decrease in volume when rolling down the tone control.

Includes:
(1) Wiring Diagram, Download HERE
(4) CTS 500k Short Split Shaft Potentiometers
(1) Switchcraft 1/4" Mono Output Jack
(1) Switchcraft 3-way switch
(2) Choice of Orange Drop or Bumblebee Capacitors

Not included:
Pickguard, knobs and switch tip

Control Layout:

• Neck Volume and Bridge Volume
• Neck Tone and Bridge Tone
• 3-Way Switch

Choosing Your Capacitor Value
Traditionally, SGs use .022μF. However, our kits give you the option of different capacitor values so you can choose how much top end you want rolled off with the tone pot(s):

• .015μF rolls off the least amount of top end
• .022μF is the median value
• .047µF rolls off the most top end when your tone pot is turned down.

To help you choose the capacitor that best fits your needs, be sure to watch our videos on Capacitor Values and Capacitor Materials.

More About Our Pre-Wired Kits
Our kits are hand-wired by Lollar Pickups in the USA to Jason Lollar's preferred specifications. They feature Lollar spec'd CTS potentiometers with a special taper for an even range of volume and tone adjustment. With high-quality Switchcraft switches for superior reliability and longevity, and your choice of Orange Drop Poly Film-in-Foil or Bumblebee Paper-in-Oil capacitors.

We've also put together a video on Soldering Basics that may be helpful to watch before installing your pre-wired kit.

*THESE KITS ARE BUILT WITH THE CONTROLS SPACED TO FIT STANDARD USA GIBSON SGs. CONTROLS ON IMPORT GUITARS MAY BE SPACED DIFFERENTLY.
If you are installing the kit on an import guitar with metric-sized pots, you may need to ream the holes for your controls (AVOID USING A DRILL BIT) to accept the slightly larger US-spec pots (3/8" shaft diameter, 24 spline) and purchase US-spec knobs.

PLEASE NOTE: All prewired kits are built-to-order as custom work, may take three to five business days before shipping, and are not eligible for return or exchange. Prewired kits are thoroughly tested after assembly, if you have a problem with any of the wiring components during installation, STOP, do not remove or replace any of the components from the prewired kit and contact our customer service team at [email protected] or (206) 463-9838 for warranty service. Prewired kits that have been altered or had components replaced are not eligible for warranty service.

Ok... so there aren't any reviews yet, but there will be soon, we promise!

Be the first to rate this item! Write a Review

Frequently Asked Questions

Do you offer loaded pickguards or sell your pickups wired to a complete wiring harness?
We are not able to offer loaded pickguards, nor are we able to wire our pickups to a prewired kit.

Can you do custom options for prewired kits like push/pull pots, additional toggle switches, et cetera?
We are not able to do custom configurations. However, you can order the pots, caps, switch, and jack as individual components and configure them however you like.

Will your pots fit my import guitar?
Many import guitars use metric units of measurement for their component sizes. Import guitars often have pots that have smaller diameter shafts than US made guitars. If you are replacing the electronics in your import guitar with our prewired kit, you will likely need to enlarge the holes for the volume and tone pots. A hand reamer tool is perfect for this job.
